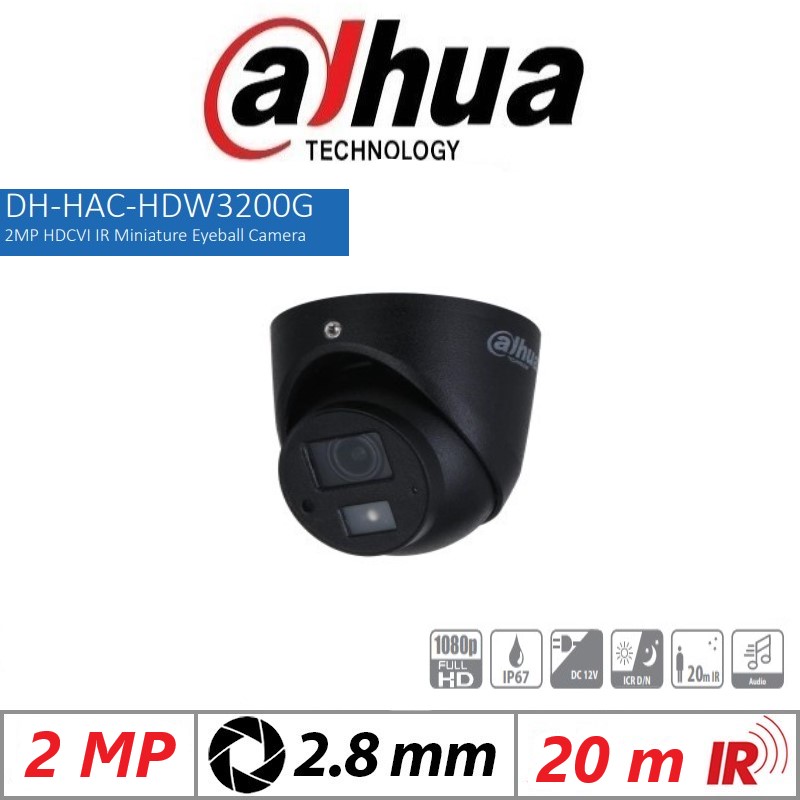

DAHUA HAC-HDW3200G-0280B-S5 (2,8mm)
Analogna Mini Dome kamera 2 Mpx, DWDR, objektiv 2.8 mm, IR domet 20 m, Smart IR, IP67, napajanje 12VDC, ugrađen mikrofon, crna boja.
Technical Specification
Camera
Image Sensor 1/2.7 inch CMOS
Max. Resolution 1920 (H) x 1080 (V)
Pixel 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
S/N Ratio >65 dB
Min. Illumination 0.02 Lux/F2.0, 30IRE, 0 Lux IR on
Illumination Distance 20 m (65.6 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture 2.8 mm: F2.0
3.6 mm: F2.0
Field of View 2.8 mm: H: 101°; V: 54°; D: 119°
3.6 mm: H: 84°; V: 45°; D: 100°
Iris Type Fixed iris
Close Focus Distance 2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.8 m (2.62 ft)
Port
Audio Interface Built-in Mic
Video Output Video output choices of CVI/TVI/AHD/CVBS by one
BNC port
Power
Power Supply 12V ±30% DC
Power Consumption Max 2.3W (12V DC, IR on)
Environment
Operating Temperature –40°C to +60°C (–40°F to 140°F); <95% (noncondensation)
Storage Temperature –40°C to +60°C (–40°F to 140°F); <95% (noncondensation)
Protection Grade IP67
Structure
Casing Metal
Dimensions Φ62.0 mm × 61.7 mm (Φ2.44″ × 2.43″)
Net Weight 0.17 kg (0.37 lb)
Gross Weight 0.27 kg (0.6 lb)
