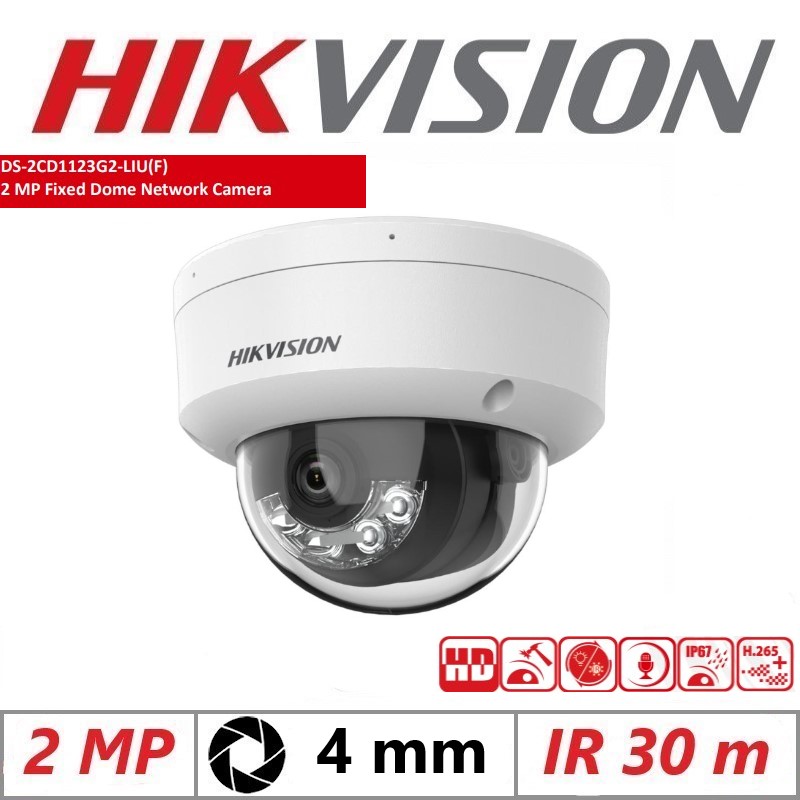

HIKVISION DS-2CD1123G2-LIU (4mm)
Specification
Camera
Image Sensor 1/2.9″ Progressive Scan CMOS
Max. Resolution 1920 × 1080
Shutter Time 1/3 s to 1/100,000 s
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI
DORI
2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m
4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to
160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
Security
Password protection, complicated password, watermark, basic and digest
authentication for HTTP, WSSE and digest authentication for Open Network Video
Interface, security audit log, host authentication (MAC address)
