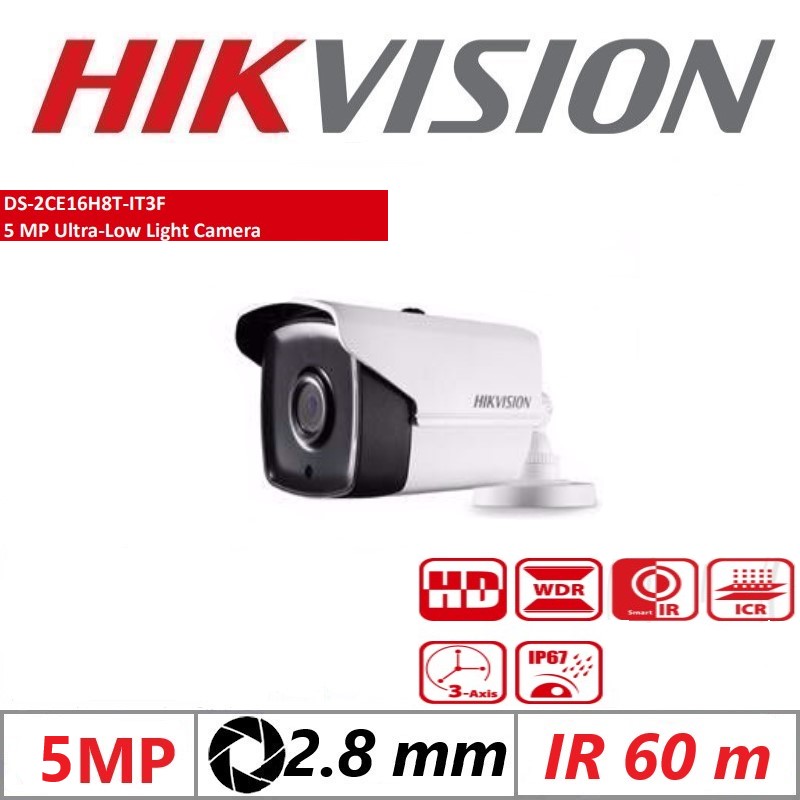

HIKVISION DS-2CE16H8T-IT3F-2.8mm (5 MP Ultra Low Light Camera)
5 MP high performance CMOS
2560 × 1944 resolution
2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
EXIR 2.0, smart IR, up to 60 m IR distance
OSD menu, 3D DNR, 130 dB true WDR
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
IP67
Up the coax (HIKVISION-C)
Camera
Image Sensor 5 megapixel progressive scan CMOS
Signal System PAL/NTSC
Resolution 2560 (H) × 1944 (V)
Min. Illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Frame Rate
TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps
AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps
CVI: 4 MP@25fps, 4 MP@30fps
CVBS: PAL, NTSC
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
Horizontal Field of View 98°(2.8 mm), 78° (3.6 mm), 48° (6 mm), 37° (8 mm), 23° (12 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) ≥ 130 dB
Menu
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
BLC (Backlight Compensation) Yes
WDR Yes
3D DNR Level 1 to 9
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable areas
Language English
Functions Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
Power Supply 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption Max. 5.8 W
Protection Level IP67
Material Metal
IR Range Up to 60 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 81.9 mm × 86.7 mm × 217.9 mm (3.22″ × 3.41″ × 8.58″)
Weight Approx. 570 g (1.26 lb.)
